AutomatePro

All-In-One Outdoor Robotics Controller

AutomatePro is a powerful and adaptable autonomy kit built on ROS2, designed specifically for outdoor robotics and automation tasks. It integrates numerous essential systems into a single solution, including extensive I/O, powerful computing capabilities (with ML and AI accelerators), an integrated IMU and RTK GNSS, and a durable IP67-rated housing. Additionally, it features various data interfaces, wireless communication options (4G, 5G, WiFi), a wide voltage supply range, and pre-configured software tools to seamlessly integrate all these systems.

INQUIRE HERE

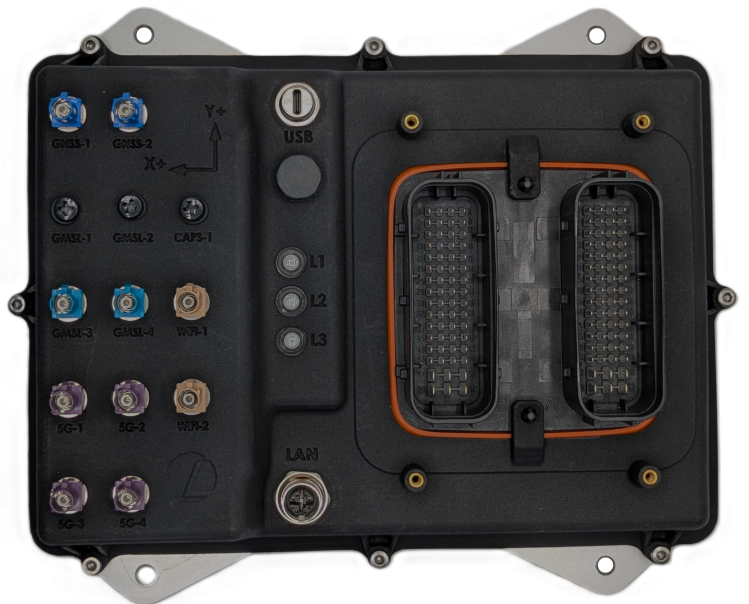

Computer Control System

GMSL2

RTK

WIFI

IP67

RS485

IMU

CAN

5G

Hardware

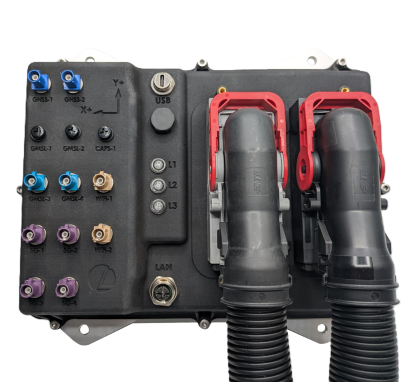

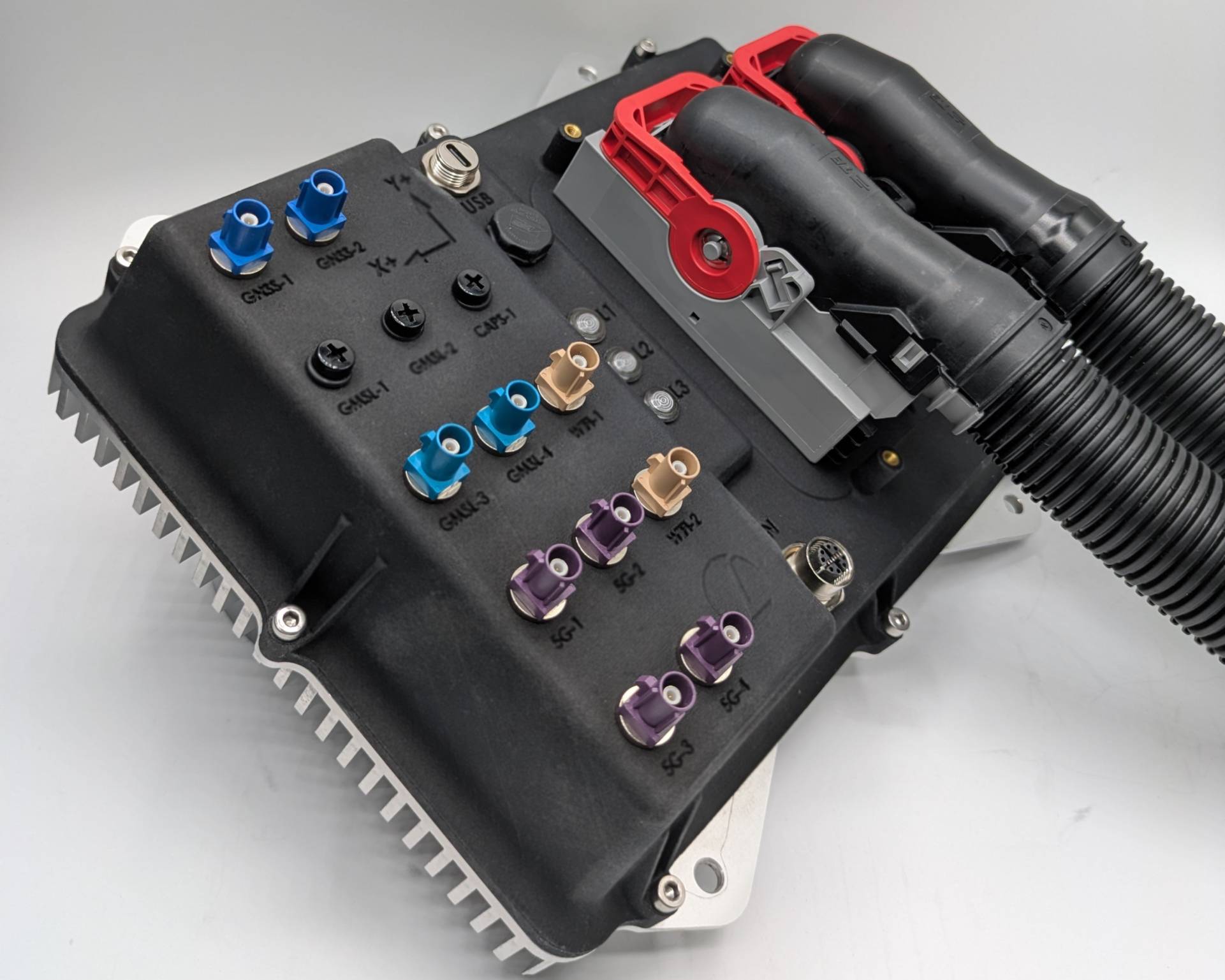

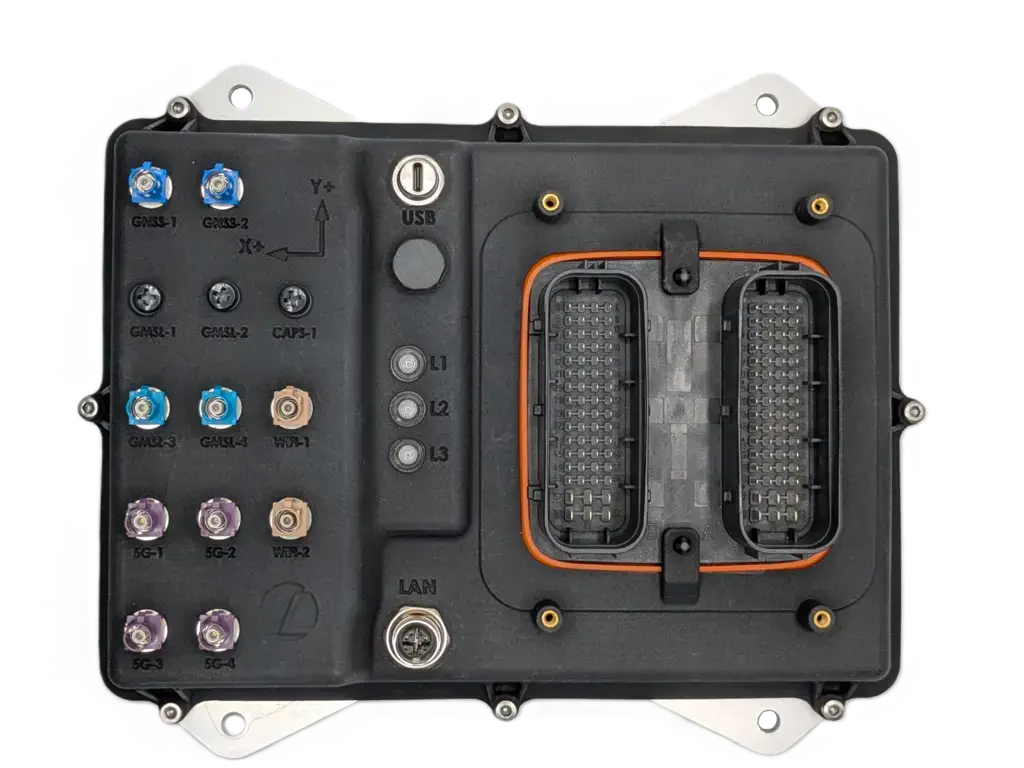

The AutomatePro integrates the essential components for outdoor robotics into a single device.

Software
AutomatePro Controller
Preconfigured ROS2 with Extensive Sensor and IO Integration

The AutomatePro includes ready-to-use ROS 2 integration for onboard sensors and systems such as RTK GNSS (with heading support), a 9-axis IMU, voltage and current monitoring, and digital and analog I/O.

Pre-configured ROS 2 drivers make these interfaces immediately available through standard topics, reducing setup time and simplifying development. This allows teams to focus more on application design while relying on a consistent software foundation for outdoor robotics.

Controller 2
Accelerate your time-to-market with AutomatePro’s development tools
Foxglove Studio Extension
AutomatePro offers a Foxglove Studio extension that provides an easy way to test all onboard sensors and I/O control
Development Breakout Board
AutomatePro’s attachable breakout board with terminal blocks streamlines your prototyping process
GMSL2 Cameras & Antennas
The AutomatePro offers GMSL2 camera and driver communication for seamless integration.
Seamless progression from concept to deployment.

Its development breakout board features clearly labeled terminal blocks, making it easy to test and iterate during the design phase. The board connects directly to the standard AutomatePro unit, and once development is complete, a custom wire harness can be built to interface with the same system—providing a robust IP67-rated, waterproof solution.

Development Breakout Board
Production Harness
AutomatePro Documentation
Category Details
Compute Options
  • Jetson Orin Nano 4GB
  • Jetson Orin Nano 8GB
  • Jetson Orin NX 8GB
  • Jetson Orin NX 16GB
Software
  • Base ROS 2 drivers for all sensors and IO
  • Linux Ubuntu 22.04
  • Jetpack 6.X.X
Sensors
  • 9 axis IMU (3 axis Compass, 3 axis Gyro, 3 axis Accelerometer)
  • GNSS RTK positioning
  • GNSS Heading
  • 2x or 4x GMSL2 Camera feeds
Integrated IO
  • 10x Digital Inputs
  • 12x Digital Outputs (~500mA)
  • 12x Digital Drive software configurable as half or full-Bridge (5A)
  • 14x Analog Inputs (0-10V or 4-20mA (on request))
  • E-stop Input
  • Warning Light and Buzzer Drivers
Connectivity
  • 5G/4G Connectivity
  • WiFi
  • Bluetooth
  • RS485
  • CAN FD Bus
  • 1GbE Ethernet
  • USB 3.1
Power System
  • 15.5V to 58V Supply Voltage Range
  • Extensive power supply monitoring with current & voltage sensing on most onboard power supplies and all external facing supplies
  • 12V 8A Onboard power supply for external systems
  • 5V 3A onboard power supply for external systems
Environmental
  • IP67 water ingress protection
  • Robust keyed connectors to prevent systems from being incorrectly connected



AutomatePro Documentation
AutomatePro Brochure
AutomatePro 3D Model.step
AutomatePro Documentation for LLMs

Accessories

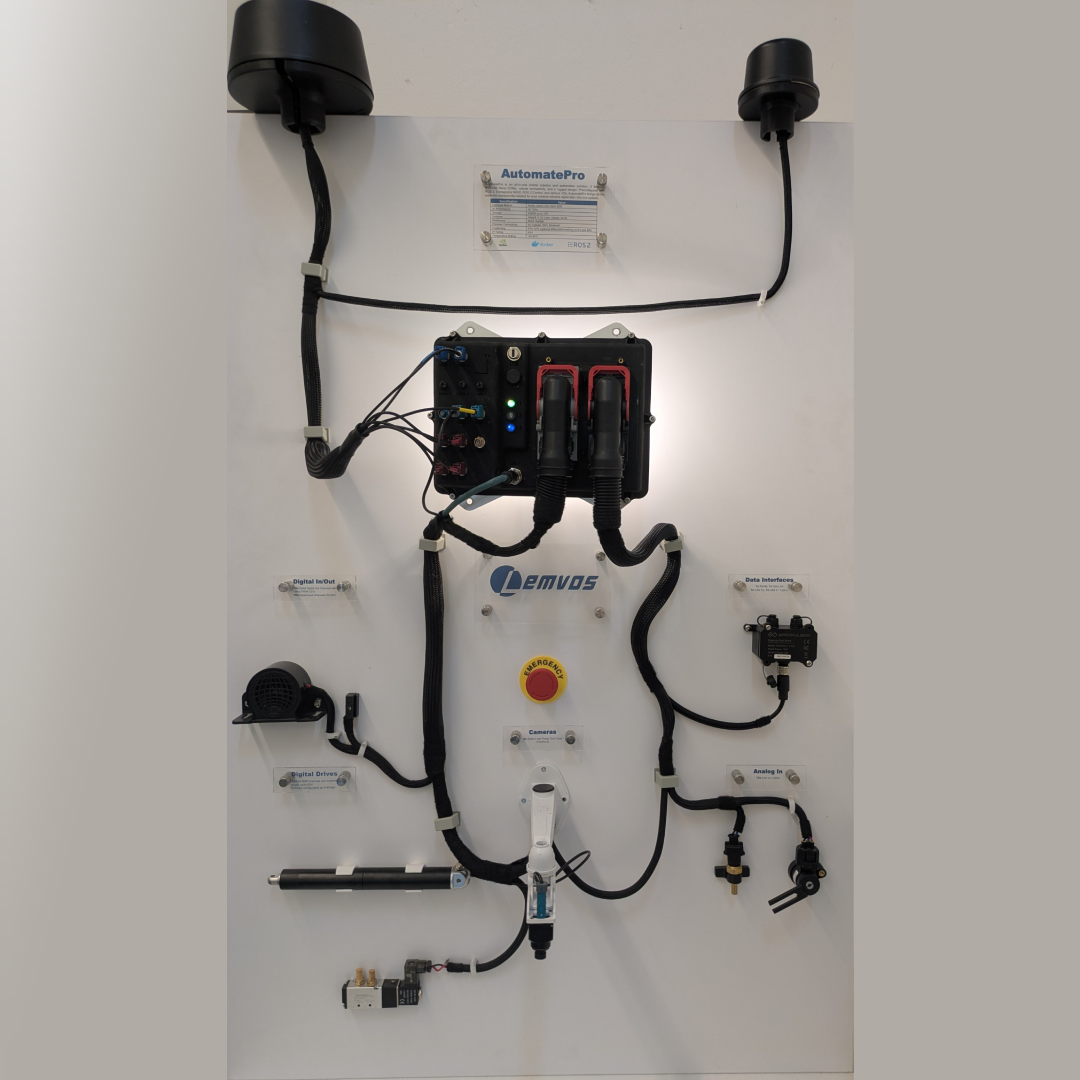

AutomatePro Demo
AutomatePro Stand
