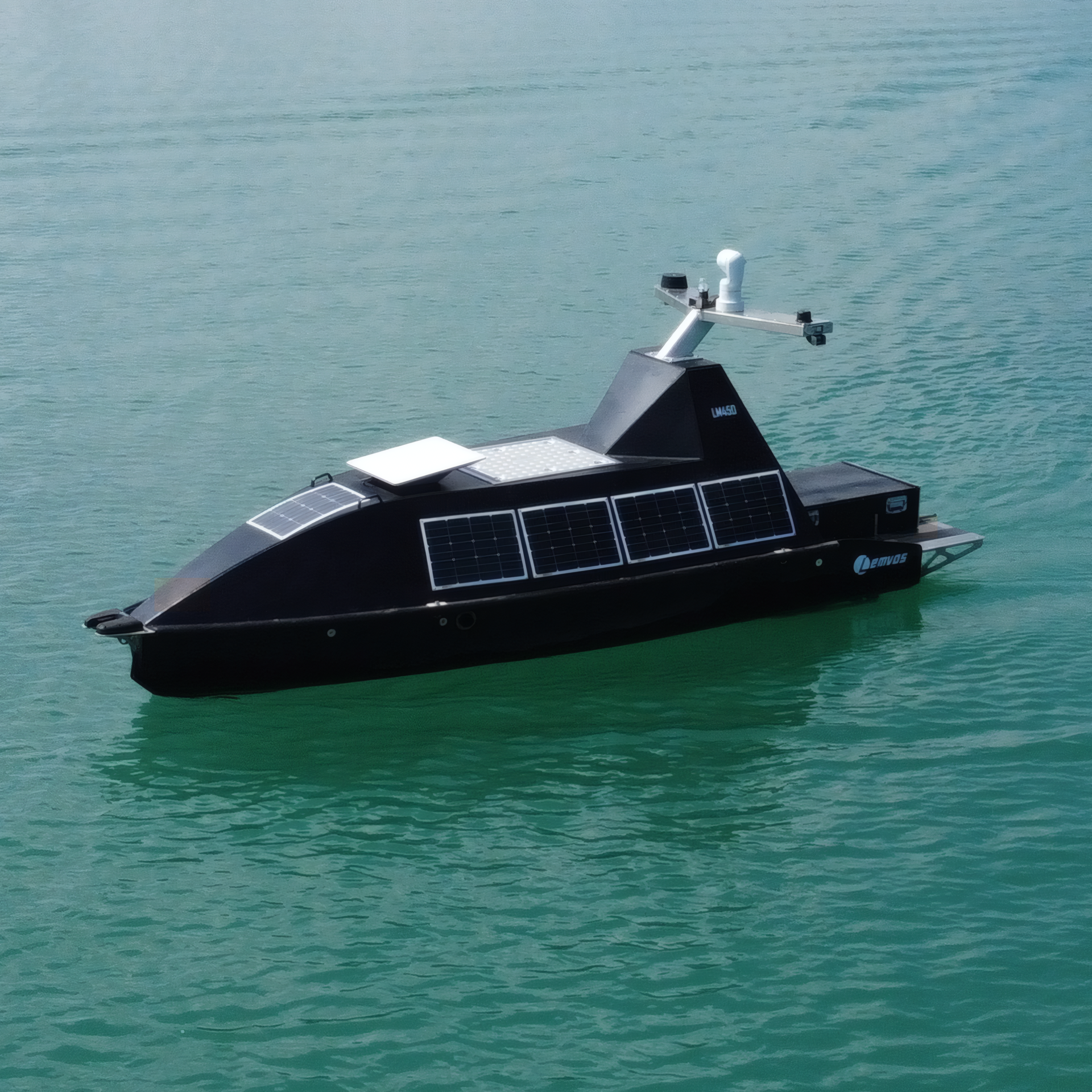

The LM450 is a compact, multirole USV with omnidirectional thrusters for agile, redundant propulsion. Its modular deck supports sonars, ROV/AUV launch systems and UAV docking, enabling environmental monitoring, defense/security and seafloor mapping. It operates remotely or semi‑autonomously via satellite or 5G, carries over 300 kg and stays on mission for weeks.
Features
Redundant Propulsion
Self-Righting Hull
Precision GNSS
Redundant Communication
Flexible Payload Bay
Long Endurance
Tri-State Hybrid
Semi-Autonomous
Rugged, long‑endurance USV featuring built‑in redundancy for added reliability and endurance
Deployment & Recovery of UAVs
Supports the deployment of small unmanned aerial surveillance systems, providing a reliable hub for both power and communications.

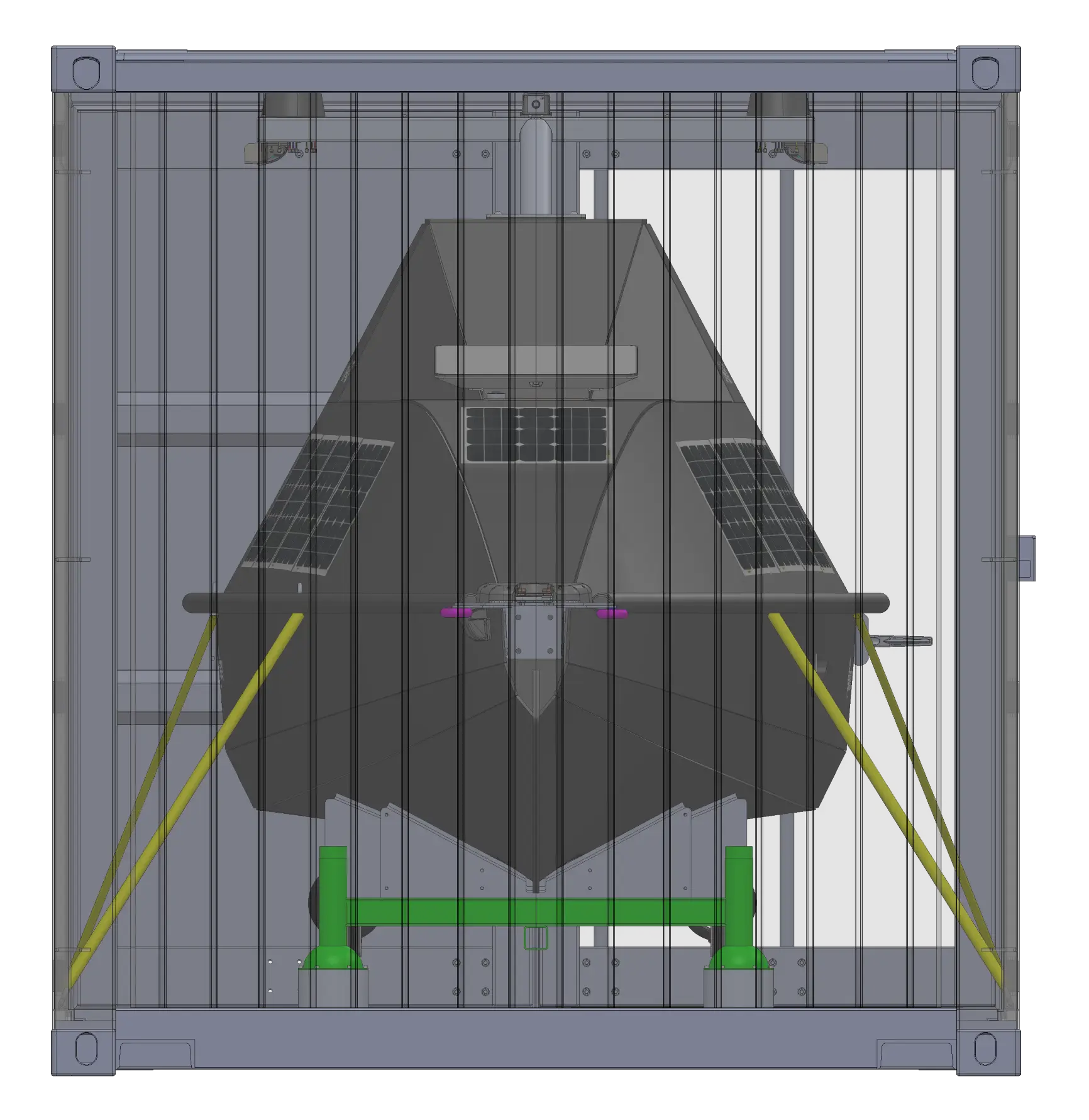

Made for ease of transport
The LM450 is designed to fit inside a standard 20-ft shipping container, making transport simple and cost-effective. Its compact footprint and modular design mean it can be shipped globally using conventional freight services, reducing logistics complexity and enabling rapid deployment anywhere in the world
LM450 with Dockmaster
Seamless integration for autonomous docking and operations
All-in-one Control with AutomatePro
Streamlining operations for seamless autonomous management

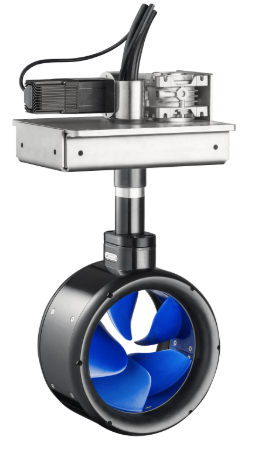

Dual Omnidirectional Thrusters
Durable omnidirectional thrusters for precise and reliable control
-
TECHNICAL SPECIFICATIONS
-
DIMENSIONS
-
DOWNLOADS
-
GALLERY
| Category | Details |
|---|---|
| General | Hull Length: 4800 mm Hull Width: 1800 mm Draft: 440 mm — depending on configuration Height: 2400 mm (Mast up) Displacement: 630 kg — dry mass excluding payload Hull: Displacement type & Self-righting Hull Material: HDPE Top Speed: 5.5 kts, 10 km/h Max Operation Sea State: 6 (Beaufort scale) Propulsion: 2 x 5 kW Electric omnidirectional thruster Remote Docking: DockMaster with 3 kW charging Endurance: Configuration types: 6 Months – Max endurance without human intervention (requires Lemvos DockMaster station). 30 Days – Max continuous mission duration without docking (diesel-solar hybrid). 34 Hours – Single mission endurance for pure electric version. All mission endurance values depend on the specific mission parameters. |
| Power & Energy |
Power Generation: 3.5 kW diesel generator + 350 W Solar Fuel Capacity: 170 l Diesel — Additional range extender tanks available Battery Capacity: 12.8 kWh Additional battery capacity available for pure electric version |
| Control & Connectivity |
Controller: Dual Redundant Lemvos AutomatePro Situational Awareness: Camera, AIS receiver, Sonar, Radar Connectivity: Starlink, 4G/5G, Iridium, WIFI On Board Processor Module: NVIDIA Jetson Orin — integrated in AutomatePro Control Interface: Lemvos Ground Control Station (PC based) |
| Payload | Max Payload: 330 kg — depending on configuration Payload Bay Available Voltages: 230 VAC, 48 VDC, 24 VDC, 12 VDC, 5 VDC Max Payload Power supply: 2.5 kW — depending on configuration Internal Payload Volume: 1056 x 350 x 500 mm External Payload Volume: 1500 x 1200 x 1000 mm |
